Does the DD130 work in passive mode without the DA175 transmitter, or is the signal generator required?

The DD130 operates in full passive mode to detect energized services without any additional equipment. The DA175 transmitter is optional and enables active locating mode for tracing specific lines and depth estimation; passive detection alone handles most standard 811 compliance and utility scanning work.

What frequency does the DD130 operate at, and why does that matter for North American utility locating?

The DD130 operates at 60Hz, which is the standard power grid frequency in North America. This frequency dominates electrical utility distribution and ensures the locator effectively detects energized services that are the primary strike hazard on most dig-safe projects.

Can the DD130 detect non-metallic utilities like PVC gas lines or fiber optic cables?

The DD130 detects buried cables, metallic pipes, and energized services electromagnetically. Non-metallic utilities like plastic gas lines without conductive tracers or non-energized fiber require either passive detection of any companion metallic sheaths or active tracing with the DA175 transmitter connected to the target line.

What are the four detection modes on the DD130, and when would a crew use each one?

While the manufacturer specifications confirm four detection modes including current measurement and long-distance tracing, specific mode details require hands-on product documentation. Contact our expert support team for detailed guidance on mode selection for your specific utility locating scenarios.

Is the DD130 suitable for HDD utility clearance and potholing work?

Yes. Civil engineers and HDD contractors rely on the DD130 for subsurface utility engineering (SUE) and pre-bore locating to identify conflicts and prevent strikes during directional drilling. The long-distance tracing and depth estimation (with DA175) capabilities support accurate utility clearance mapping.

What warranty and support does Express Tools provide with the DD130?

As an authorized Leica Geosystems dealer, Express Tools provides factory-backed warranty coverage on all DD130 units. Our expert support team offers technical assistance, field troubleshooting, and equipment guidance—backed by 30-day returns if the unit doesn't meet your requirements.

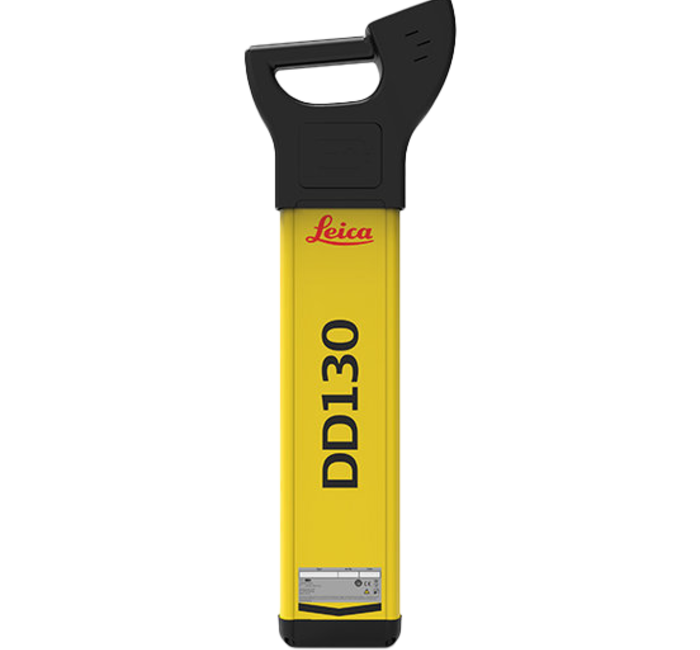

Leica Detect DD130 Buried Utility Locator (60Hz) - 872941

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Blade Design: Crocodile geometry optimized for tough cutting
Primary Use: Vegetation clearing, survey line establishment
Blade Type: Specialized cutting tool
Application: Dense brush, undergrowth, fallen branches
Key Feature 1: Distinctive Crocodile blade design
Key Feature 2: Optimized cutting geometry for tough materials

Leica GeosystemsDD130SKU LGS-872941New

Accessories →

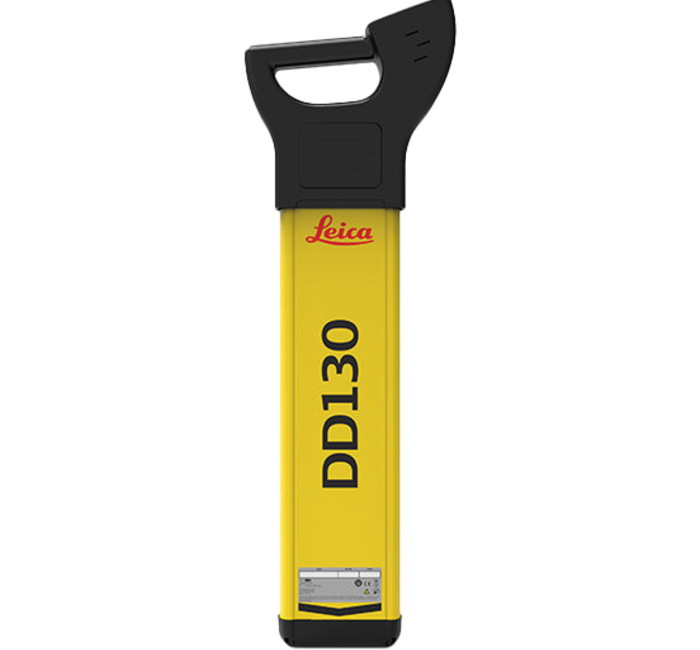

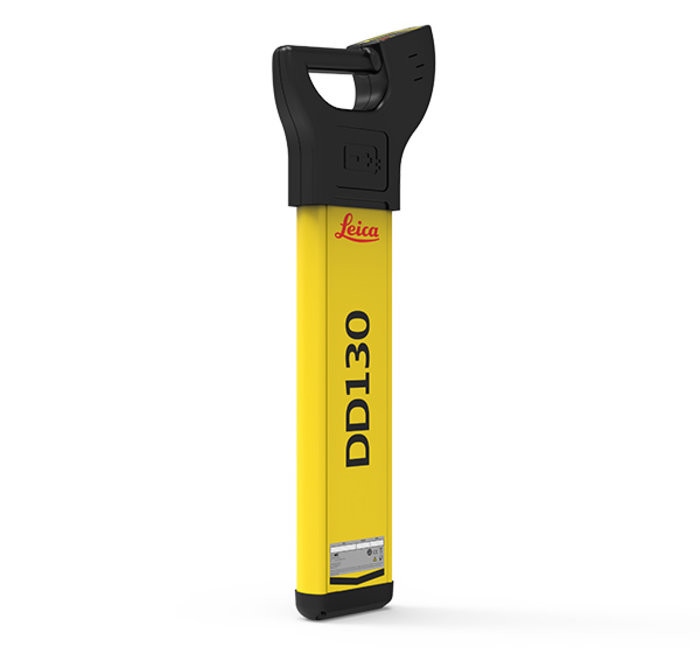

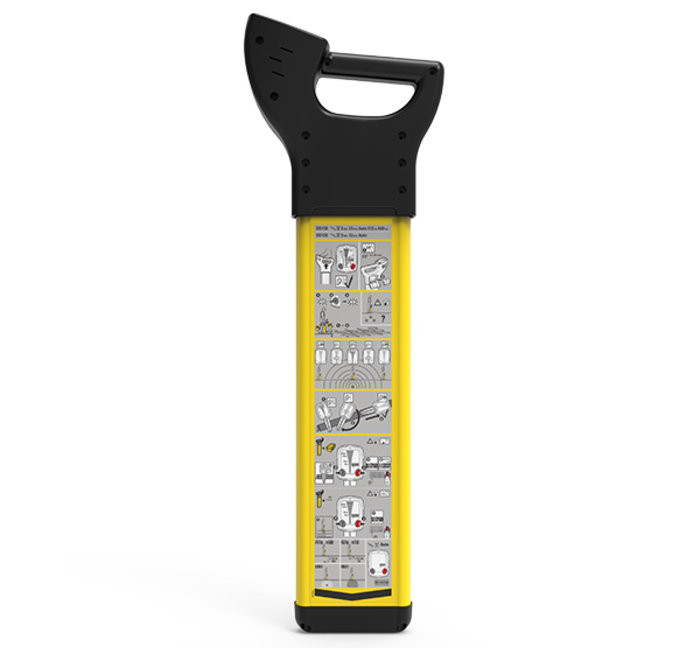

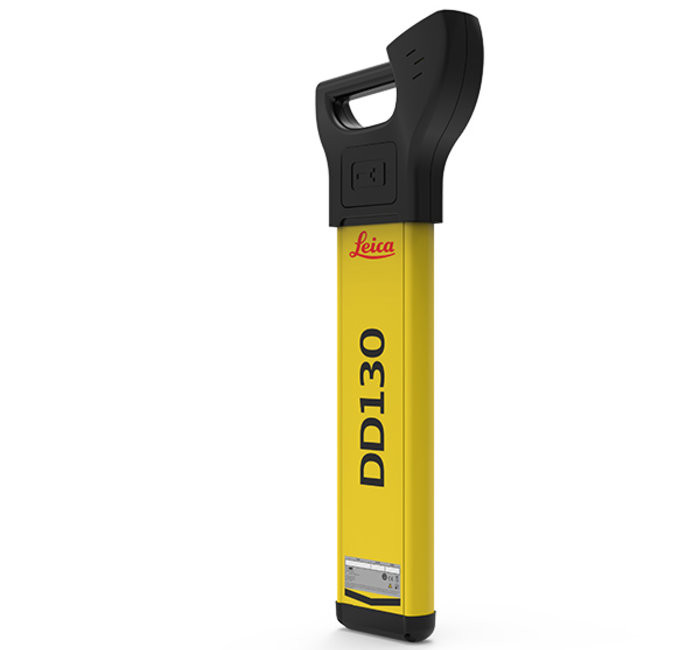

Leica Detect DD130 Buried Utility Locator (60Hz)

$1830.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

Authorized Leica Geosystems Dealer

Genuine, factory-fresh Leica Geosystems equipment with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2 PM CT ship the same day.

Buy With Confidence

Compatibility and setup details on every product, plus our AI assistant for quick questions.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Leica Geosystems equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Leica Geosystems DD130?

The Leica Detect DD130 (60Hz) is a professional electromagnetic buried utility locator manufactured by Leica Geosystems that detects energized cables, metallic pipes, and services through four detection modes including current measurement and long-distance tracing. It is compatible with the DA175 signal transmitter for active locating and depth estimation on dig-safe and 811 compliance projects.

FIELD APPLICATIONS

What contractors use this accessories for

811 Dig-Safe Compliance and Locate Marking

Utility locating contractors use the DD130 to respond to one-call requests and mark buried utilities before excavation. The four detection modes and long-distance tracing capability enable comprehensive utility identification required by 811 regulations and dig-safe programs.

Active Line Tracing with DA175 Transmitter

When paired with the DA175 signal generator, crews actively trace specific utility lines and estimate burial depth for precise marking. This active locating method isolates target utilities in congested subsurface environments where multiple services overlap.

Utility Strike Prevention on Excavation Projects

Civil engineers and general contractors use passive detection to scan work areas before breaking ground on grading, trenching, and HDD operations. Early identification of buried infrastructure prevents costly strikes, project shutdowns, and personnel injuries.

Telecom and Gas Service Line Identification

Telecom installers and gas contractors locate fiber, copper, and service lines during new installations and maintenance work. The DD130's current measurement mode specifically identifies energized electrical services that pose strike hazards.

Municipal Utility Mapping and Infrastructure Assessment

Municipalities deploy the DD130 for subsurface utility engineering (SUE) projects, utility conflict resolution, and underground asset mapping. The four detection modes provide comprehensive data for utility network documentation and right-of-way planning.

PRODUCT OVERVIEW

Product Description

When basic detection isn't enough — the DD130 steps up. It adds two extra low frequencies (512Hz and 640Hz) for tracing over longer distances, extends sonde detection depth to 33 feet for deep drain and sewer work, and adds a current measurement indicator so operators can confirm signal strength in real-time. If you're working on complex utility networks, deep drainage systems, or long cable runs where the DD120 reaches its limits, the DD130 is built for it.

IP54 Rated 33ft Sonde Depth 6 Detection Modes Current Measurement 15-Hour Battery 1-Year Warranty CE / FCC Certified Art. 872941

Extended Range. More Modes. Real Operator Feedback.

Every day, contractors, utility crews, and locating professionals face the same risk: cutting into something they didn't know was there. A utility strike can mean injury, downtime, costly repairs, and liability. The Leica DD130 Utility Locator eliminates that guesswork — and goes further than the entry-level DD120.

Where the DD120 covers the basics, the DD130 adds 512Hz and 640Hz transmitter frequencies for long-distance tracing across complex utility networks. Its sonde depth extends to 9.99m (33 feet) — three times deeper than the DD120 — making it the right tool for deep drainage and sewer tracing. And its current measurement display shows milliamp readings in real time, giving operators a direct readout of signal strength on the located service.

With 6 detection modes, rugged IP54-rated housing, 15-hour battery life, and a simple 2-button interface, the DD130 is the professional step up for crews who need more than the basics. Pair it with the DA175 Signal Transmitter (Depth Package) to unlock active tracing at all six frequencies including 512Hz and 640Hz.

Leica DD utility locator detecting buried cables on job site

Active field use — tracing buried utilities before excavation

Leica DD locator underground utility detection tracing pipes

Precise depth and route detection of buried services

Leica DD utility locator professional field test construction site

Built for professional performance on demanding job sites

Key Features

6 Detection Modes

Auto, Power, Radio, 8kHz, 33kHz, 512Hz, and 640Hz. Two exclusive low-frequency modes for tracing longer cable runs and complex utility networks.

Extended Sonde Depth — 33ft

Sonde depth detection from 0.3m to 9.99m (1ft to 33ft). Three times deeper than the DD120 for deep drain, sewer, and duct tracing.

Current Measurement (mA)

Displays the milliamp current flowing through the located service in real time — confirming signal strength and cable identification on the spot.

Hazard Zone Indicator

Visual alert warns the operator when the locator detects a buried utility in close proximity — before you dig.

15-Hour Battery Life

6× AA alkaline batteries deliver a full day of continuous operation. Standard batteries available anywhere on the job site.

IP54 Weatherproof

Protected against dust ingress and water splashes — designed and tested for demanding construction job site conditions.

Available Configurations

Device Only
Art. 872941
Leica DD130 Device Only

Depth Package
Art. 6014157
Leica DD130 Depth Package

What's In The Box

Both configurations include the same DD130 locator — the difference is the accessories.

Included Item	Device Only Art. 872941	Depth Pkg Art. 6014157
DD130 Utility Locator	✓	✓
Batteries (6× AA)	✓	✓
User Manual	✓	✓
1-Year Warranty	✓	✓
DA175 Signal Transmitter 1W active tracing & depth estimation	—	✓
System Carry Bag Fits DD130 + DA175 transmitter	—	✓
Price	Add to Cart	—Add to Cart

Also available: Depth Package (Art. 6014157)

Device Only — What You Need to Know

The DD130 Device Only is the locator unit alone. It works as a standalone tool for passive detection — picking up signals from live, energized power cables and metallic utilities already carrying current (Power mode, 60Hz) or a signal (Radio mode). No additional equipment is required for this use.

For full utility locating capability — especially the DD130's extended active-tracing frequencies (512Hz, 640Hz) and 33ft sonde depth — you will also need:

DA175 Signal Transmitter (Art. 949370) — Required for depth estimation, tracing dead/de-energized cables, and active route tracing at 8kHz, 33kHz, 512Hz, or 640Hz. Included in the Depth Package.
Midi Sonde 8/33kHz (Art. 850289) — Required to locate non-metallic and PVC pipes, drains, and sewers. The DD130's extended sonde depth (up to 33ft) makes this especially effective for deep drainage work.
System Carry Bag — Recommended for safe transport of locator and transmitter on the job site.

Already own a DA175? The Device Only is the right choice — the DD130 pairs directly with your existing transmitter and DD130-compatible sondes. Not sure which configuration is right for you? Call us at 1-877-866-5721 — we'll help you figure it out.

Technical Specifications

Power Detection	60Hz mains frequency
Radio Frequencies	15kHz – 60kHz
Active Transmitter Modes	8kHz, 33kHz, 512Hz, 640Hz
Auto Mode	Power, Radio, 33kHz
Line Depth Range	0.3m – 3m (1ft – 10ft)
Sonde Depth Range	0.3m – 9.99m (1ft – 33ft)
Depth Accuracy	±10% (to undistorted signal)
Current Measurement	Yes (mA display)
Audio Output	85 dBA at 30cm
Environmental Rating	IP54
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Battery	6× LR6 (AA) Alkaline
Battery Life	15 hours continuous at 20°C
Weight (with batteries)	2.7 kg / 5.95 lbs
Dimensions (H×W×D)	760 × 250 × 85 mm
Compatible Transmitter	DA175 Signal Transmitter (Art. 949370)
Certifications	CE, FCC
Warranty	1 Year
Article Number	872941

Compare DD Series Models

Feature	DD130 ← You Are Here	DD120	DD300 CONNECT
Detection Modes	+ 512Hz, 640Hz	Auto, Power, Radio, 8kHz, 33kHz	+ 83kHz, 131kHz
Max Line Depth	10ft (3m)	10ft (3m)	10ft (3m)
Max Sonde Depth	33ft (9.99m)	10ft (3m)	23ft (7m)
Depth Accuracy	±10%	±10%	±5%
Current Measurement	✓	—	✓
Long-Distance Frequencies	512Hz, 640Hz	—	✓
GPS / Data Logging	—	—	✓
Bluetooth	—	—	✓
Li-Ion Battery Option	—	—	Optional
Warranty	1 Year	1 Year	3 Years
