Leica Detect DD120 (60Hz) Depth Package - 6014155

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Head Weight: 4 lbs
Head Weight: 4lb
Handle Length: 11.5 inches
Handle Length: 11.5 inches
Grip Type: Shock Reduction Grip
Handle Material: Fiberglass-reinforced

Leica GeosystemsDD120SKU LGS-6014155New

Accessories →

Leica Detect DD120 (60Hz) Depth Package

Name: Leica Detect DD120 (60Hz) Depth Package - 6014155
Brand: Leica Geosystems
SKU: LGS-6014155
Price: 3015.00 USD
Availability: InStock

$3015.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

Authorized Leica Geosystems Dealer

Genuine, factory-fresh Leica Geosystems equipment with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2 PM CT ship the same day.

Buy With Confidence

Compatibility and setup details on every product, plus our AI assistant for quick questions.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Leica Geosystems equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Leica Geosystems DD120?

The Leica Detect DD120 (60Hz) Depth Package is a professional active electromagnetic utility locating system from Leica Geosystems that combines a CAT (cable avoidance tool) and DA175 signal transmitter for detecting buried cables, pipes, and energized conductors with depth estimation. It's the complete kit for dig safe compliance, HDD pre-bore work, and subsurface utility mapping on excavation and construction projects.

FIELD APPLICATIONS

What contractors use this accessories for

Construction Layout

Precise positioning for structural and civil work

As-Built Documentation

Field-verified position records for project closeout

Grade Verification

Confirm elevations against design before pouring or paving

PRODUCT OVERVIEW

Product Description

The most capable DD120 configuration — the Leica DD120 paired with the DA175 1-Watt Signal Transmitter and a system carry bag. With the transmitter, you get full active route tracing and depth estimation on any metallic line. The go-to kit for serious utility crews.

IP54 Rated 10 ft Depth 15-Hour Battery 1-Year Warranty CE / FCC Certified Art. 872939

Active Locating, Depth Estimation & Route Tracing — The Full Kit

Passive detection tells you where live power cables are. But what about dead cables, de-energized services, gas mains, and metallic pipes that aren't carrying a signal? For those, you need to put a signal on the line — and that's exactly what the Leica DD120 Depth Package is built to do.

The included DA175 1-Watt Signal Transmitter injects an active electromagnetic signal directly onto any metallic service. The DD120 then locates it, traces its route, and measures its depth to within ±10% accuracy. This is the tool HDD contractors use before directional drilling, and what utility locating technicians rely on for full-service mapping before excavation.

Carry bag included. This is the complete CAT and genny kit — passive detection for live services, active tracing for everything else.

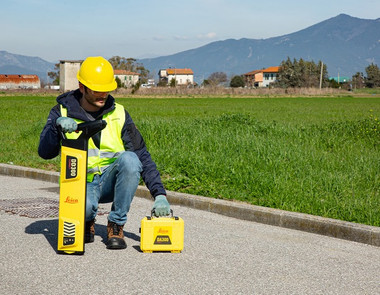

Leica utility locator detecting buried cables on job site

Active field use — tracing buried utilities before excavation

Leica DD locator underground utility detection tracing pipes

Precise depth and route detection of buried services

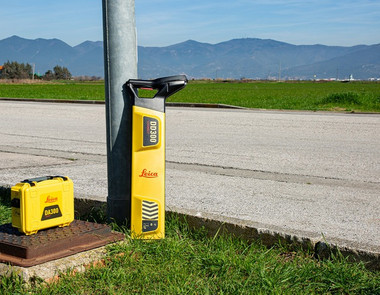

Leica DD utility locator professional field test construction site

Built for professional performance on demanding job sites

Key Features

Multiple Detection Modes

Auto, Power, Radio, and Transmitter modes detect a wide range of buried utilities without manual frequency selection.

Depth Estimation

Measure line and sonde depth from 0.3m to 3m (1–10 ft) with ±10% accuracy when used with a signal transmitter.

Hazard Zone Indicator

Visual alert warns the operator when the locator detects a buried utility in close proximity — before you dig.

Audio Guidance

85 dBA tone guidance at 30cm helps operators accurately trace buried utilities by sound in noisy site conditions.

15-Hour Battery Life

6× AA alkaline batteries deliver a full day of continuous operation without recharging. Standard batteries available anywhere.

IP54 Weatherproof

Protected against dust ingress and water splashes — designed and tested for demanding construction job site conditions.

Available Configurations

Device Only
Art. 872939

Plumbers Package
Art. 6014159

Depth Package
Art. 6014155

What's In The Box

All packages include the same DD120 locator — the difference is the accessories included.

Included Item	Depth Pkg Art. 6014155	Device Only Art. 872939	Plumbers Pkg Art. 6014159
DD120 Utility Locator	✓	✓	✓
Batteries (6× AA)	✓	✓	✓
User Manual	✓	✓	✓
1-Year Warranty	✓	✓	✓
Midi Sonde 8/33kHz Non-metallic pipe tracing	—	—	✓
Locator Bag	—	—	✓
DA175 Signal Transmitter Depth estimation & tracing	✓	—	—
System Carry Bag Fits locator, transmitter	✓	—	—
Price	Add to Cart	—Add to Cart	—Add to Cart

Also available: Device Only (Art. 872939) | Plumbers Pkg (Art. 6014159)

Technical Specifications

Power Detection	60Hz mains frequency
Radio Frequencies	15kHz – 60kHz
Active Transmitter Modes	8kHz, 33kHz
Auto Mode	Power, Radio, 33kHz
Line Depth Range	0.3m – 3m (1ft – 10ft)
Sonde Depth Range	0.3m – 3m (1ft – 10ft)
Depth Accuracy	±10% (to undistorted signal)
Audio Output	85 dBA at 30cm
Environmental Rating	IP54
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
Battery	6× LR6 (AA) Alkaline
Battery Life	15 hours continuous at 20°C
Weight (with batteries)	2.7 kg / 5.95 lbs
Dimensions (H×W×D)	760 × 250 × 85 mm
Compatible Transmitter	DA175 Signal Transmitter (Art. 949370)
Certifications	CE, FCC
Warranty	1 Year
Article Number	872939

Compare DD Series Models

Feature	DD120 ← You Are Here	DD130	DD300 CONNECT
Detection Modes	+ 83kHz, 131kHz	Auto, Power, Radio, 8kHz, 33kHz	+ 512Hz, 640Hz
Max Detection Depth	23 ft (7m)	10 ft (3m)	10 ft (3m)
Depth Accuracy	±5%	±10%	±10%
Current Measurement	✓	—	✓
GPS / Data Logging	✓	—	—
Bluetooth	✓	—	—
Li-Ion Battery Option	Optional	—	—
Warranty	3 Years	1 Year	1 Year
Starting Price
