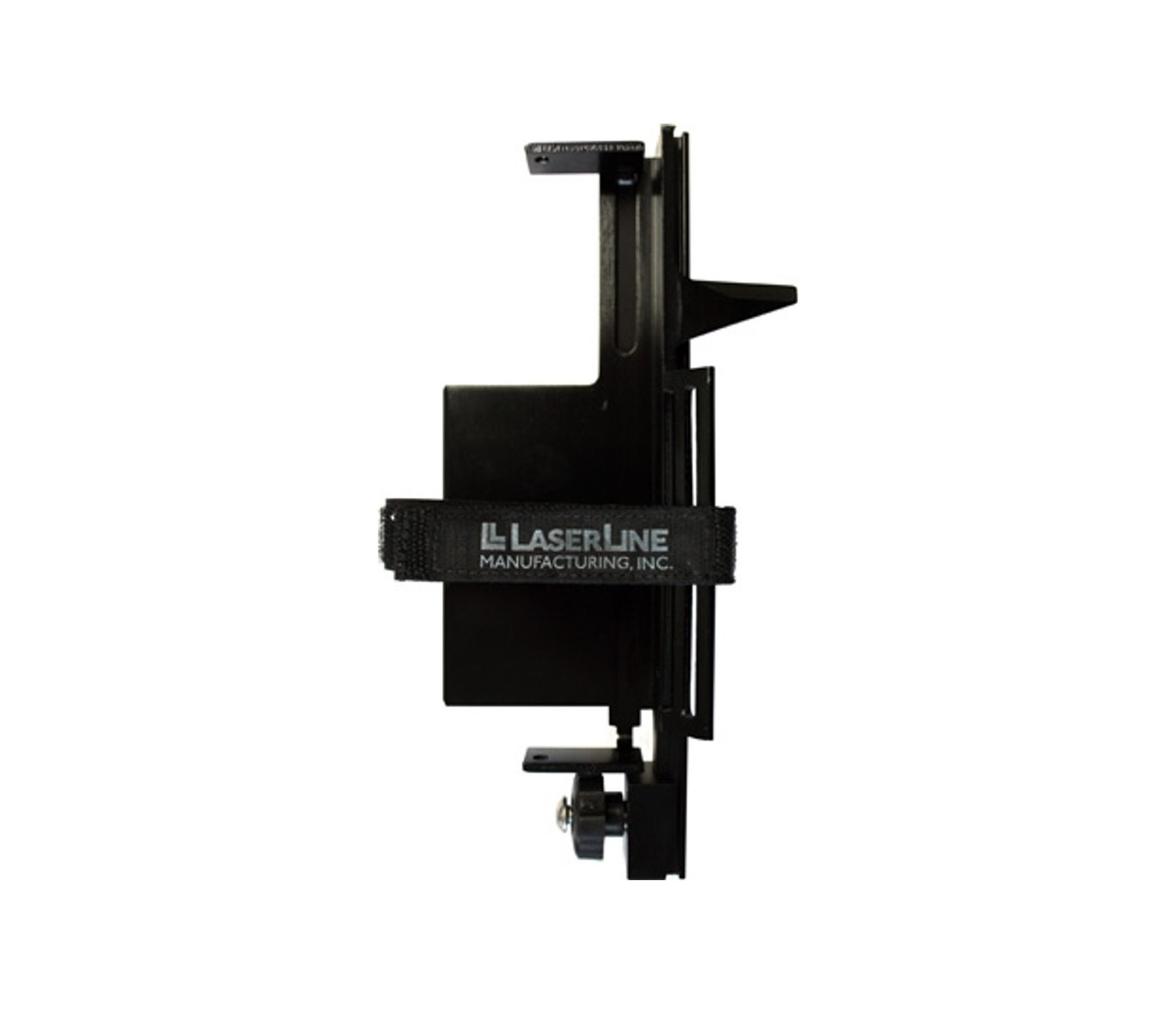

LaserLine Manufacturing UB1 Direct Elevation Rod Bracket for Spectra HR320 Receiver

Mount Your Laser Receiver Securely on Any Direct-Reading Grade Rod

The LaserLINE Manufacturing UB1 Universal Detector Bracket is the no-nonsense mounting solution contractors need when running direct-reading elevation work in the field. Designed to clamp your laser receiver firmly onto LaserLINE GR1000 and GR1450 grade rods, the UB1 eliminates the slipping, fumbling, and re-positioning that kills productivity on grading, drainage, and utility layout jobs. Whether you're working with the Spectra Precision HR320 or a compatible detector, this bracket gives you a stable, repeatable mounting position every time you pull the rod out of the truck.

Overview & Jobsite Applications

The UB1 is built specifically for contractors who depend on direct-reading rods to pull grade elevations without a rod person calling cuts. The bracket's precision-machined aluminum body seats squarely against the rod face, while the integrated clamping mechanism holds the detector at a consistent height so readings stay accurate across the full crew. It's the right tool for sitework foremen who need fast setups on tight schedules — no tape, no zip ties, no improvised mounts.

Key Specifications

• Model: UB1 Universal Detector Bracket
• Manufacturer: LaserLINE Manufacturing
• Construction: Extruded aluminum with hard anodized finish
• Compatible Rods: LaserLINE GR1000, GR1450 direct-reading grade rods
• Compatible Receivers: Spectra Precision HR320 and similar profile detectors
• Mounting Style: Clamp-on, tool-free adjustment
• Finish: Hard anodized for corrosion and abrasion resistance

Key Features

• Precision Fit: Machined to seat squarely and securely on GR1000 and GR1450 rod faces without play or wobble
• Hard Anodized Aluminum: Resists corrosion, concrete splatter, and job-site abuse that would destroy plastic alternatives
• Tool-Free Clamping: Quick-set clamp lets crews reposition the detector in seconds, keeping layout moving
• Consistent Detector Height: Locks receiver at a repeatable position so every elevation reading is reliable and crew-verified
• Compact Profile: Low-profile design keeps the rod readable and the detector protected during carry and setup
• Universal Compatibility: Accommodates standard detector body widths used across multiple receiver brands and models

Job Applications

Residential Site Grading: Set final grades for pads, driveways, and drainage swales without a two-person crew. The UB1 holds the HR320 steady so the operator can read cuts and fills directly off the GR1000 rod face.

Underground Utility Layout: Use the UB1-equipped rod to pull invert elevations on storm drain, sanitary sewer, and water main installations where precise depth control prevents costly re-digs.

Concrete Flatwork: Check slab elevations and screed rail heights quickly across a pour deck. The secure bracket mount means the detector won't shift between checks, keeping your slab on grade.

Landscape & Irrigation Grading: Ideal for finish grading crews establishing positive drainage around structures, where fast rod moves and accurate sub-inch readings are required throughout the day.

Compatible Accessories

• LaserLINE GR1000 Direct-Reading Grade Rod
• LaserLINE GR1450 Direct-Reading Grade Rod
• Spectra Precision HR320 Laser Receiver
• LaserLINE Carrying Case for Grade Rods

Related Guides

• How to Set Up a Direct-Reading Grade Rod for Sitework
• Choosing the Right Laser Receiver for Rotating Laser Systems
• Grade Rod Accessories Buyer's Guide for Contractors

Frequently Asked Questions

What grade rods is the UB1 compatible with?

The LaserLINE UB1 is designed specifically for the LaserLINE GR1000 and GR1450 direct-reading grade rods. Its machined aluminum body is sized to fit these rod profiles securely without modification.

Will the UB1 work with laser receivers other than the Spectra HR320?

The UB1 is rated for the Spectra Precision HR320 receiver and accommodates standard detector body widths. Many contractors report compatibility with similar-profile receivers, but we recommend confirming fitment with your specific detector before purchase.

Does the UB1 require any tools to attach or reposition on the rod?

No. The UB1 features a tool-free clamping mechanism that lets you attach, adjust, and reposition the bracket quickly by hand — keeping your crew efficient during layout and grade checks.

Is the UB1 suitable for outdoor use in wet or muddy conditions?

Yes. The hard anodized aluminum construction makes the UB1 resistant to corrosion, moisture, and the general abuse of outdoor construction environments. It's built to hold up on the same jobsites your grade rods work on every day.
