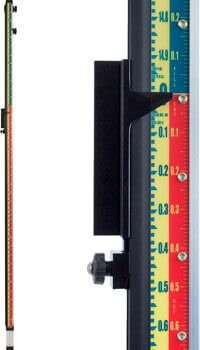

LaserLine GR1450 15-Foot Direct Reading Laser Grade Rod

Direct Reading Grade Rod Built for Laser Receiver Work

The LaserLine GR1450 is a 15-foot direct reading grade rod engineered specifically for laser level and receiver applications on grading, excavation, and site prep jobs. This Lenker-style rod features a GR Series direct reading face that displays measurements in feet, tenths, and hundredths, plus dedicated cut and fill markings that let your rod operator call out grade without conversion delays. Whether you're shooting elevations on a highway job or establishing pad grade on a commercial pour, the GR1450 gives your crew the speed and accuracy professional work demands.

Overview & Jobsite Applications

Designed from the ground up for use with rotating laser levels and laser receivers, the GR1450 eliminates the mental math that slows down traditional rod readings. The direct reading face is calibrated so that once your receiver is set to grade, your rod man reads the cut or fill directly off the face — no conversions, no calculator, no miscommunication. The sturdy fiberglass construction handles jobsite abuse while maintaining dimensional stability across temperature swings. At 15 feet of total reach, this rod covers the elevation range demanded by most earthwork, utility, and site development operations.

Key Specifications

• Model: GR1450
• Total Length: 15 feet
• Rod Style: Lenker / Direct Reading
• Graduation: Feet, tenths, hundredths
• Markings: Cut and fill indicators
• Material: Fiberglass construction
• Compatible With: Rotating laser levels with standard laser receivers
• Application: Grading, excavation, site prep, utility layout

Key Features

• GR Series direct reading face — eliminates benchmark math in the field
• Cut and fill markings clearly printed on rod face for fast grade calls
• Lenker-style design accepted industry-wide for grade rod work
• 15-foot length handles deep cuts and high fill applications
• Fiberglass build resists warping, moisture, and UV degradation
• High-contrast graduations remain legible in bright sunlight
• Compatible with all major brand laser receivers including Spectra, Leica, and Topcon
• Lightweight enough for all-day carrying without operator fatigue

Job Applications

Rough Grading & Earthwork: Set your laser, clip on the receiver at target grade, and your operator reads cut or fill directly off the GR1450 face. No back-calculating from a benchmark height — your dozer or scraper operator gets a clean number every pass.

Commercial Slab & Pad Prep: When you need subgrade within a hundredth on a concrete pour, the GR1450's hundredths graduation gives your grade checker the resolution to confirm compacted base elevation before the trucks roll.

Utility Trenching & Pipe Laying: Use the cut markings to confirm invert elevations and trench depth on storm, sewer, or water main installations. The 15-foot reach handles deep utility cuts without switching rods.

Road & Parking Lot Construction: Establish and verify cross-slopes, curb grades, and base course elevations efficiently across wide paving footprints where rotating laser control is standard practice.

Compatible Accessories

• LaserLine LR-series Laser Receivers — clip-on receivers compatible with GR1450 rod channel
• Grade Rod Carrying Case — padded case sized for 15-foot fiberglass rods
• Rod Clamp / Receiver Bracket — adjustable bracket for secure receiver mounting on rod
• Rotating Laser Levels — paired lasers for full grade control setups

Related Guides

• How to Use a Direct Reading Grade Rod with a Laser Receiver
• Lenker vs. Philadelphia Rod: Which Grade Rod Is Right for Your Job?
• Setting Up a Rotating Laser for Grading & Excavation Work
• Grade Rod Maintenance: Keeping Your Rod Face Accurate Season to Season

Frequently Asked Questions

What makes the GR1450 a "direct reading" grade rod?

A direct reading rod, also called a Lenker-style rod, is set to your design elevation so that the receiver reads cut or fill directly off the rod face. Unlike a standard Philadelphia rod where you read a raw elevation and calculate the difference from your target, the GR1450 lets your rod operator call the grade instantly — no math required in the field.

Is the GR1450 compatible with any laser receiver brand?

Yes. The GR1450 is designed to accept standard clip-on laser receivers from all major manufacturers including Spectra Precision, Leica, Topcon, CST/Berger, and DeWalt. As long as your receiver has a standard rod clamp bracket, it will mount to the GR1450.

Does the 15-foot length mean the rod is 15 feet extended, or is that its collapsed length?

The GR1450 is a 15-foot rod at its full working length. It is not a telescoping rod — it is a fixed-length fiberglass grade rod intended to be carried upright on the job. Verify your transport vehicle or job trailer can accommodate the full 15-foot length before ordering.

Can I use the GR1450 for optical level work, or is it only for laser applications?

The GR1450's direct reading Lenker face is calibrated for laser receiver use and is not designed for optical level or transit work, which requires a standard Philadelphia or metric face. If you need a rod for both optical and laser applications, consider pairing the GR1450 with a separate Philadelphia rod for optical shots.
