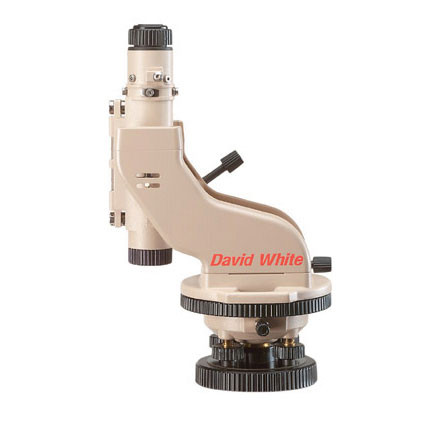

David White LT8-300LTU Line Transfer Unit with Laser Plummet 46-D8879

Overview

The David White LT8-300LTU Line Transfer Unit with Laser Plummet represents a significant advancement in precision alignment technology for underground utility work, excavation projects, and vertical construction applications. This professional-grade instrument combines a high-precision 360-degree optical sighting system with an integrated laser plummet, eliminating the need for multiple pieces of equipment on the jobsite. Engineered for surveyors, utility contractors, and construction professionals who demand accuracy and efficiency, the LT8-300LTU streamlines the process of transferring horizontal and vertical control points from surface to subsurface locations.

What sets this line transfer unit apart is its dual-functionality design. The optical transit component provides accurate angular measurements and line-of-sight establishment, while the built-in laser plummet projects a visible reference beam directly downward (or upward) for precise vertical alignment. This integration means you can establish both horizontal alignment and vertical plumb references without switching between instruments, significantly reducing setup time and potential measurement errors. The unit's robust construction ensures reliable performance in demanding field conditions, from utility tunneling operations to high-rise construction projects.

With its precision optics, durable housing, and intuitive operation, the David White LT8-300LTU delivers professional-grade accuracy at a competitive price point of $1,195, making it an excellent investment for contractors and survey crews who regularly perform underground alignment work or need to establish accurate vertical control on complex projects.

Key Specifications

• Optical System: 360-degree horizontal sighting capability with precision crosshair reticle
• Laser Plummet: Integrated red laser diode with visible beam projection
• Accuracy: ±1/4 inch at 100 feet vertical accuracy; optical accuracy within standard survey tolerances
• Laser Class: Class 2 laser device, safe for general construction use with standard precautions
• Power Source: Rechargeable battery system with extended field operation time
• Construction: Weather-resistant housing with protective lens covers
• Mounting: Standard 5/8"-11 thread for tripod compatibility
• Weight: Approximately 8.5 lbs (instrument only)
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• Magnification: 20x optical magnification for clear target viewing at distance

What's in the Kit

• David White LT8-300LTU Line Transfer Unit with integrated laser plummet
• Protective hard-shell carrying case with custom foam inserts
• Rechargeable battery pack with AC charger
• Optical plumb bob for traditional setup verification
• Lens cleaning cloth and brush kit
• Adjustment tools and hex key set
• Operation manual with setup diagrams and maintenance guidelines
• Calibration certificate and warranty documentation
• Protective rain cover for adverse weather operation

Job Applications

• Underground Utility Installation: The LT8-300LTU excels at transferring centerline alignment from surface markings down to tunnel boring machines, pipe jacking operations, or trench excavations. The laser plummet ensures your underground crew receives an accurate vertical reference point, eliminating guesswork and reducing the risk of costly misalignment that could require expensive corrections.
• Manhole and Shaft Construction: When constructing vertical shafts, lift stations, or manholes, this unit allows surface crews to establish precise vertical control that guides excavation and formwork placement below grade. The 360-degree sighting capability means you can establish multiple reference points around the shaft perimeter from a single instrument setup, dramatically improving efficiency.
• High-Rise Construction Alignment: Transfer elevation control and vertical alignment references between building floors during multi-story construction. The laser plummet projects through floor openings to establish plumb references for structural steel placement, elevator shaft alignment, and core wall positioning, ensuring building components remain true to design specifications.
• Bridge and Overpass Projects: Establish accurate vertical control from bridge decks to ground level for pier placement, foundation work, and approach grade verification. The optical sighting system allows horizontal angle measurements for proper span alignment while the laser plummet provides instant vertical reference for elevation transfers.
• Pipeline and Sewer Projects: Transfer design grades and alignment from surface control points to trench bottom or tunnel face locations. This is particularly valuable for gravity-flow sewer lines where maintaining proper slope is critical—the instrument helps verify that excavation depth and pipe placement match design elevations throughout the project.
• Mining and Excavation Operations: Whether working on slope stability monitoring, excavation depth control, or underground opening alignment, the LT8-300LTU provides the precision necessary for safe and accurate mining operations. The rugged construction withstands the harsh conditions typical of mining environments while maintaining measurement accuracy.

Compatible Accessories

• Heavy-duty aluminum tripod with adjustable legs and locking mechanisms
• Laser target plates and reflective ceiling targets for enhanced visibility
• Additional rechargeable battery packs for extended field operation
• Tribrach with optical plummet for precision instrument leveling
• Laser enhancement glasses for improved beam visibility in bright conditions
• Protective hard hat mount for hands-free laser viewing in shafts
• Extension poles and prism rods for underground target placement

Related Guides

• Complete Guide to Line Transfer Unit Setup and Operation
• Underground Survey Techniques for Utility Contractors
• Laser Safety Best Practices for Construction Sites
• Maintaining Precision: Optical Instrument Care and Calibration

FAQ

What's the difference between a line transfer unit and a standard transit?

A line transfer unit like the LT8-300LTU integrates a laser plummet with optical sighting capabilities, specifically designed for transferring reference points vertically between different elevations. While a standard transit measures horizontal and vertical angles, the line transfer unit's laser plummet provides a visible vertical reference beam, making it ideal for underground work, shaft construction, and applications where you need to project control points through floor openings or from surface to subsurface locations.

Can the laser plummet be used independently of the optical system?

Yes, the laser plummet function operates independently and can be used solely for establishing vertical plumb references without engaging the optical sighting system. This is useful for quick plumb-bob applications or when you only need vertical alignment verification. However, the true power of the LT8-300LTU lies in using both systems together for complete horizontal and vertical control.

How often does this instrument need calibration?

We recommend annual calibration for the LT8-300LTU under normal use conditions, or more frequently if the instrument experiences impact, extreme temperature changes, or heavy daily use. Signs that calibration may be needed include difficulty achieving level, inconsistent readings, or visible laser beam misalignment. Many contractors schedule calibration during winter downtime to ensure peak accuracy for the busy construction season.

Is this unit suitable for one-person operation?

Yes, the LT8-300LTU is designed for efficient one-person operation for many applications. The integrated laser plummet means you don't need a crew member holding a plumb bob, and the optical system allows self-leveling and sighting. However, for underground work or applications where the target is out of sight, a second person at the receiving location is necessary to mark the projected laser point or confirm alignment, which is standard practice for any line transfer operation.
