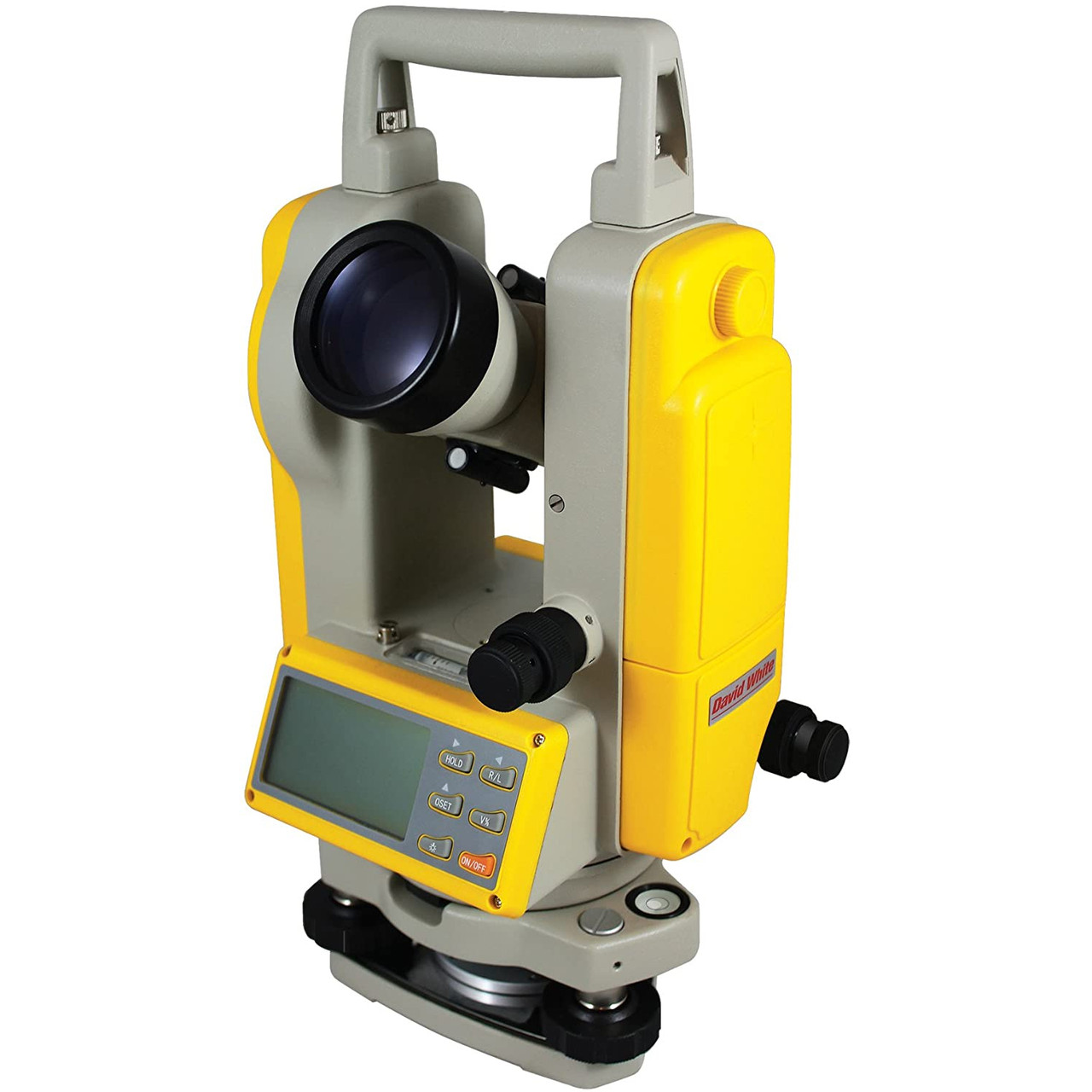

David White DT8-05LS 5-Second Laser Site Digital Theodolite with Optical Plummet 46-D8897

David White DT8-05LS Digital Laser Theodolite

The David White DT8-05LS is a professional-grade 5-second laser theodolite engineered for licensed surveyors, civil engineers, and experienced construction layout crews who demand repeatable angular accuracy on every setup. Combining a digital LCD readout with integrated laser sighting and a precision optical plummet, the DT8-05LS bridges traditional theodolite reliability with modern field efficiency. Whether you are establishing property corners, setting structural columns, or running control lines across a large site, this instrument delivers the measurement confidence that professionals require.

Instrument Overview & Jobsite Applications

The DT8-05LS is purpose-built for the demanding conditions of land surveying and construction stake-out work. Its compact, balanced optical head mounts securely to any standard 5/8-inch tribrach, making it compatible with existing accessory inventories. The dual-axis compensator keeps readings reliable even on moderately unlevel setups, and the illuminated digital display allows crew members to read angles clearly in low-light conditions such as early-morning setups or shaded building interiors. The integrated laser pointer aids in sighting targets at distance and assists with vertical alignment tasks where optical sighting alone is cumbersome.

Key Specifications

• Angular Accuracy: 5 seconds (5")
• Telescope Magnification: 30x
• Minimum Focus Distance: Approximately 1.0 m (3.3 ft)
• Field of View: 1°30' (approximately 1.5 degrees)
• Display: Dual-face LCD with backlight for horizontal and vertical angles
• Compensator: Dual-axis liquid compensator
• Laser: Integrated visible red laser pointer for sighting assistance
• Plummet: Optical plummet built into the alidade
• Tribrach Mount: Standard 5/8-inch thread, compatible with most optical tribrachs
• Horizontal Motion: Tangent screw with clamp for precise angle setting
• Vertical Motion: Tangent screw with clamp
• Battery: Standard AA batteries
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)
• Weight: Approximately 4.5 kg (9.9 lbs) including handle

What's Included

• David White DT8-05LS Laser Theodolite
• Manufacturer-supplied hard carrying case
• Lens cleaning cloth
• Operator's manual
• Battery set (AA)
• Plumb bob

Key Features

• 5-Second Resolution: Provides the angular precision demanded by licensed surveyors and high-tolerance construction work
• Laser Sighting Aid: Visible red laser assists with long-range target acquisition and vertical alignment tasks
• Digital LCD Display: Large, backlit dual-face display for fast, error-free angle reading in any lighting condition
• Optical Plummet: Ensures precise instrument centering over control points without the need for a laser plummet accessory
• Dual-Axis Compensator: Automatically corrects for minor leveling errors to maintain reading accuracy
• Rugged Construction: Built to David White's professional-grade standards for long-term field durability
• Wide Temperature Range: Performs reliably across the full range of North American field conditions

Job Applications

Property Boundary Surveys: The 5-second angular accuracy of the DT8-05LS satisfies the precision requirements for most state surveying standards when running traverse lines and establishing boundary corners. Paired with a steel tape or EDM, it forms the core of a traditional traverse workflow.

Construction Column & Wall Layout: Structural steel erectors and concrete forming crews use theodolites to set column centerlines and verify that walls are plumb and square to established control. The DT8-05LS laser simplifies target acquisition across large floor plates or multi-story vertical runs.

Roadway & Site Grading Control: Civil contractors running horizontal control for road alignments, curb and gutter, or parking lot layouts rely on theodolites to extend baseline angles from primary control points. The digital readout speeds up angle-setting tasks compared to older vernier instruments.

Pipeline & Utility Alignment: Underground utility contractors use theodolites to establish the horizontal alignment of pipe runs and verify that manholes and structures are placed on design centerline. The optical plummet ensures the instrument is precisely centered over the control nail before any shots are taken.

Compatible Accessories

• Replacement Optical Tribrachs
• Aluminum & Wood Surveying Tripods
• Prism Poles & Bipods
• Surveying Targets & Plumb Bobs
• Replacement Hard Carrying Cases

Related Guides

• How to Set Up and Level a Theodolite on a Control Point
• Theodolite vs. Total Station: Which Tool Does Your Job Need?
• Choosing the Right Layout Instrument for Your Crew

Frequently Asked Questions

What is the difference between a theodolite and a total station?

A theodolite measures horizontal and vertical angles only. A total station adds an integrated electronic distance measurement (EDM) module, allowing it to calculate slope distance, horizontal distance, and elevation difference in a single observation. If your workflow requires distance measurement, a total station is the better choice. If you are using a steel tape or separate EDM and only need precision angle measurement, a theodolite like the DT8-05LS is a cost-effective and proven solution.

Is the David White DT8-05LS accurate enough for licensed land surveying?

Yes. The 5-second (5") angular resolution meets or exceeds the accuracy requirements for most boundary and topographic survey applications under standard surveying regulations in the United States. Always verify your specific state's minimum standards, as high-order geodetic control work may require instruments with 1-second or 2-second accuracy.

What batteries does the DT8-05LS use, and how long do they last?

The DT8-05LS operates on standard AA alkaline batteries, which are readily available at any hardware or convenience store. Under typical field use with moderate backlight usage, a fresh set of AA batteries will power the instrument through multiple full workdays. Carrying a spare set in your instrument case is always recommended for extended field sessions.

Can the DT8-05LS be used with a standard surveying tribrach?

Yes. The DT8-05LS is designed to mount on any standard 5/8-inch optical tribrach, which is the most common tribrach thread used in North American surveying practice. This means it is compatible with tribrachs from Leica, Topcon, Sokkia, and other major manufacturers, and can share a tribrach with prism holders or targets for direct-reading setups.
