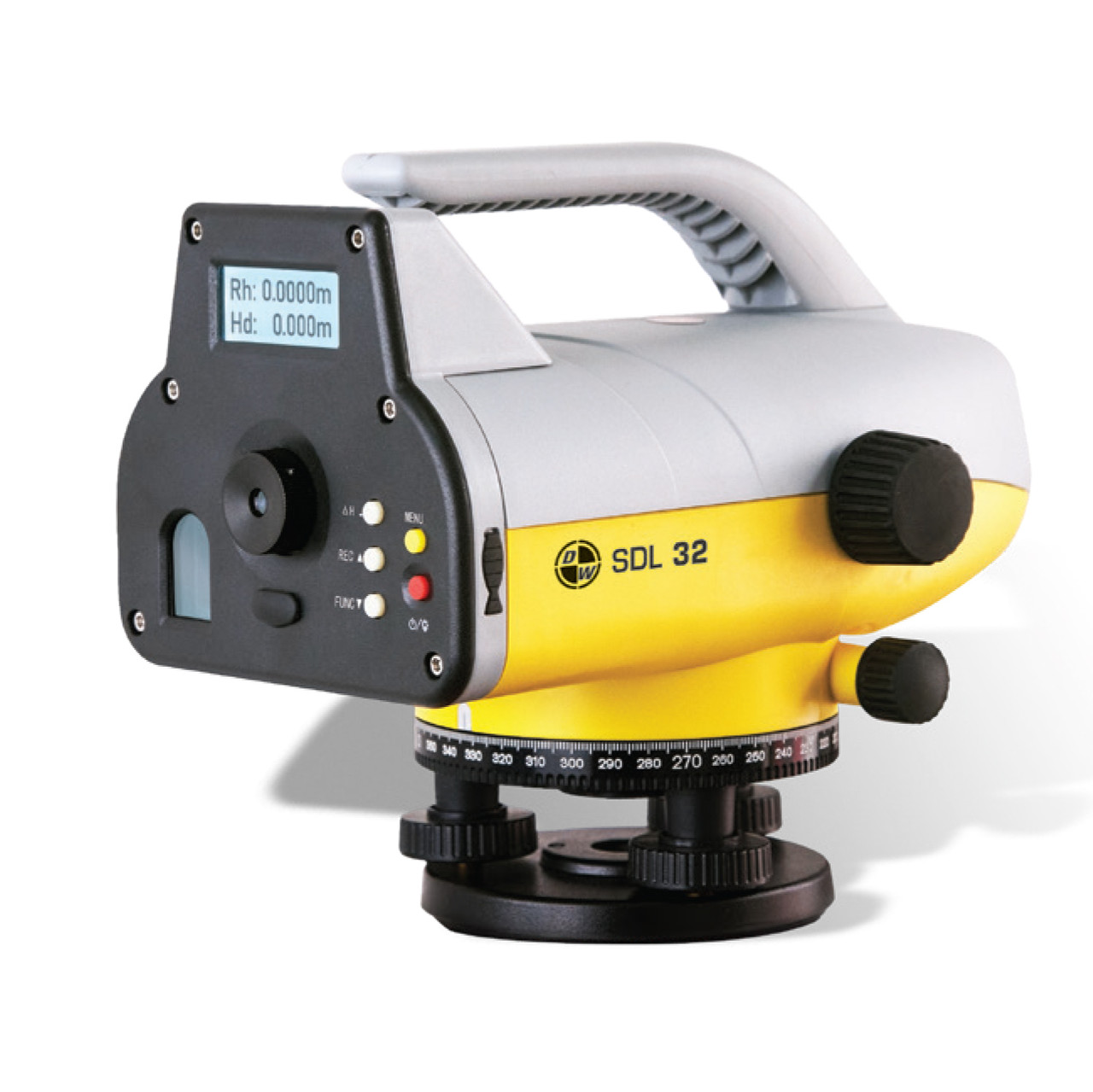

David White 25-SDL32 Power Digital Level for Building Construction

David White SDL32 32x Digital Level for Professional Contractors

The David White 25-SDL32 Digital Level is a high-performance automatic digital level designed for building construction, site development, and civil engineering crews who need fast, accurate elevation data without manual reading errors. With 32x magnification, subsecond measurement cycles, and a 1000-point internal memory, the SDL32 replaces traditional optical levels and eliminates transcription bottlenecks on large jobsites. Whether you're setting floor elevations, grading a commercial pad, or running a site control network, this instrument delivers the speed and precision professional crews depend on.

Overview: Where the SDL32 Performs

Digital levels represent the next step beyond compensator-based automatic optical levels. The SDL32 reads a specially coded rod electronically, instantly calculating and displaying the elevation reading and distance on a large backlit LCD—no manual rod interpolation required. This eliminates the most common source of elevation error on the jobsite: the human eye misreading a graduation. The built-in compensator maintains accuracy across slightly unlevel setups, and the instrument self-checks alignment before each measurement. For survey crews, building contractors, and heavy civil teams working on grade-sensitive projects, the SDL32 cuts rod-reading time dramatically and allows a single operator to cover more setups per day.

Key Specifications

• Magnification: 32x
• Measurement Accuracy: ±1.0mm per km (double-run)
• Distance Measurement Accuracy: ±10mm
• Measurement Time: Less than 3 seconds (standard), subsecond in fast mode
• Minimum Focus Distance: 0.6m
• Field of View: 1°20′
• Compensator Type: Magnetic damping, self-leveling
• Compensator Range: ±15′
• Internal Memory: 1000 points

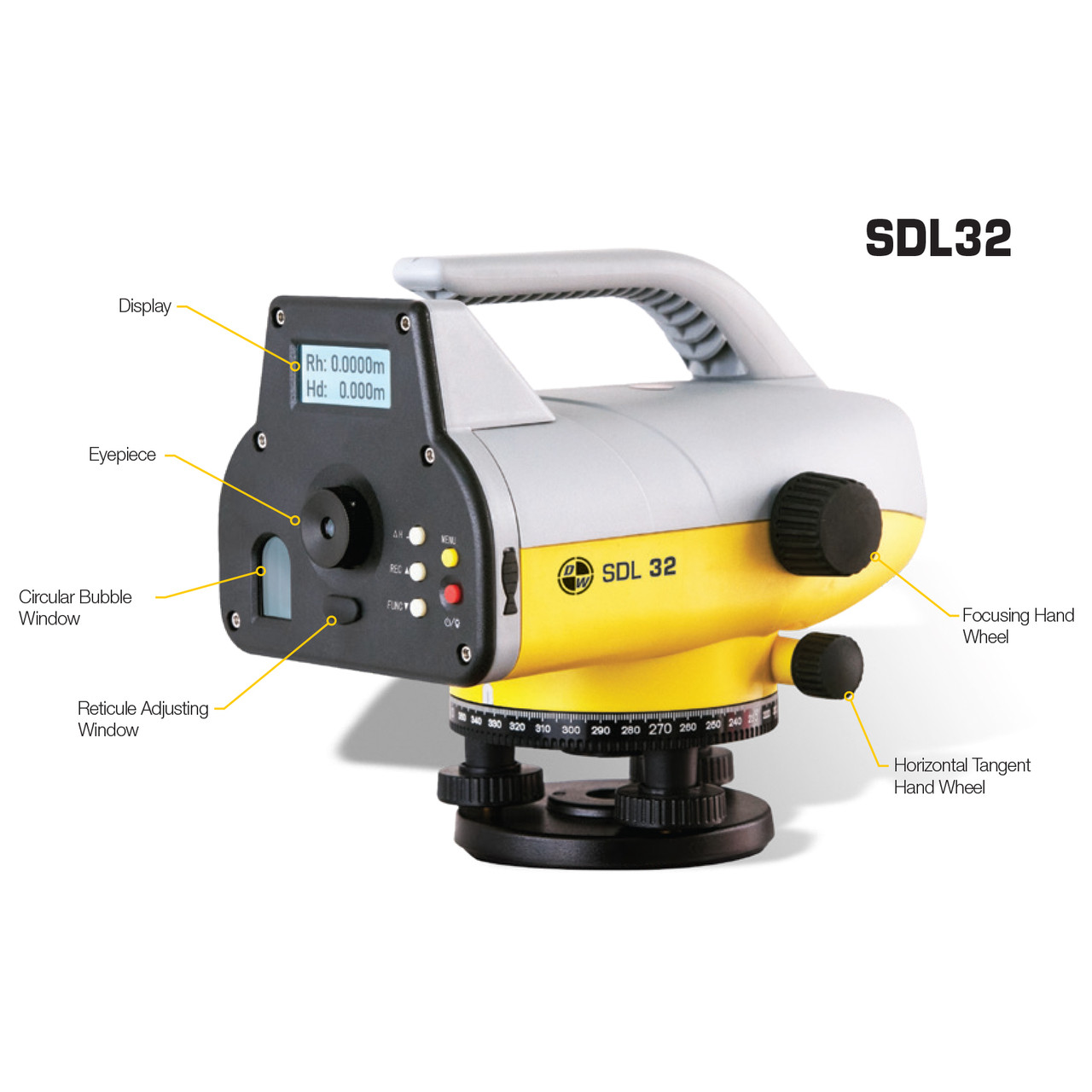

• Display: Dual-sided backlit LCD
• Data Output: RS-232 serial port
• Power Supply: 4x AA batteries
• Battery Life: Approximately 100 hours continuous use
• Operating Temperature: -20°C to +50°C
• Dust and Water Protection: IP54 rated
• Weight: Approximately 2.5 kg

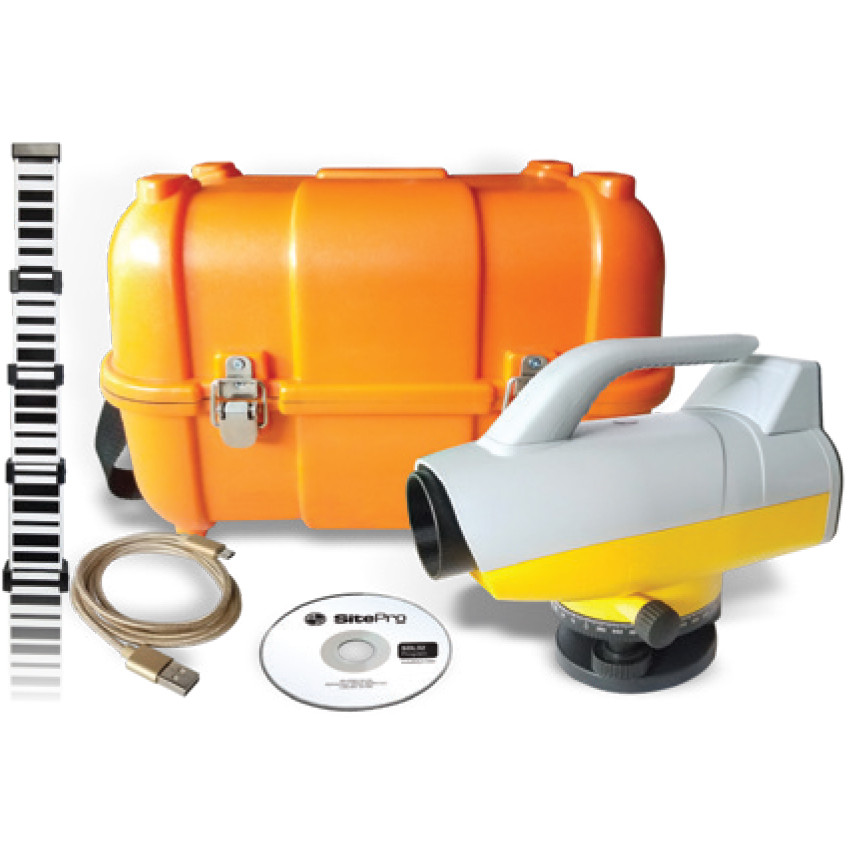

What's Included / Key Features

• David White 25-SDL32 Digital Level instrument
• Hard carrying case for field transport and storage
• Dust cap and lens cloth
• 4x AA batteries
• RS-232 data cable for office download
• Operator manual
• 1000-point internal memory stores rod readings and distances without a field computer
• Dual-sided display lets rod person and instrument operator both read measurements simultaneously
• Backlit LCD for low-light and early morning operation
• Fast measurement mode for high-productivity layout and grade checking
• Continuous measurement mode for real-time grade monitoring during earthwork
• Self-leveling compensator with automatic out-of-level warning

Job Applications

Commercial Building Construction

Setting floor slab elevations, checking formed deck heights, and transferring benchmark elevations between floors requires both accuracy and speed. The SDL32's digital readout eliminates misread graduations on crowded formwork sites and lets one person capture dozens of elevation shots before the concrete truck arrives.

Site Grading and Earthwork

Grade contractors use the SDL32's continuous measurement mode to monitor cut-and-fill progress in real time. The instrument's 1000-point memory means the operator records every shot for end-of-day reconciliation without relying on handwritten tally sheets that get wet or torn.

Utility and Infrastructure Layout

Setting pipe inverts, manhole rim elevations, and utility structure grades demands elevation repeatability at the millimeter level. The SDL32's ±1.0mm accuracy and digital output reduce the chance of costly invert errors that require excavation rework.

As-Built Surveys and Quality Control

Project QC crews and inspection teams use the SDL32 to verify as-built elevations against design tolerances quickly. The stored dataset downloads via RS-232 directly into spreadsheet or survey software, producing a clean elevation record for the project file without re-keying field data.

Compatible Accessories

• David White Coded Digital Level Rod — required for digital measurement mode
• David White Aluminum Tripod — stable platform for production leveling
• Replacement Hard Carrying Case
• RS-232 Data Transfer Cable
• Field Data Collector / Data Logger

Related Guides

• Digital Level vs. Optical Level: Which Is Right for Your Crew?
• How to Set Floor Slab Elevations with a Digital Level
• Choosing the Right Leveling Rod for Digital Instruments
• Downloading and Processing Digital Level Data in the Office

Frequently Asked Questions

Does the SDL32 work with standard fiberglass leveling rods?

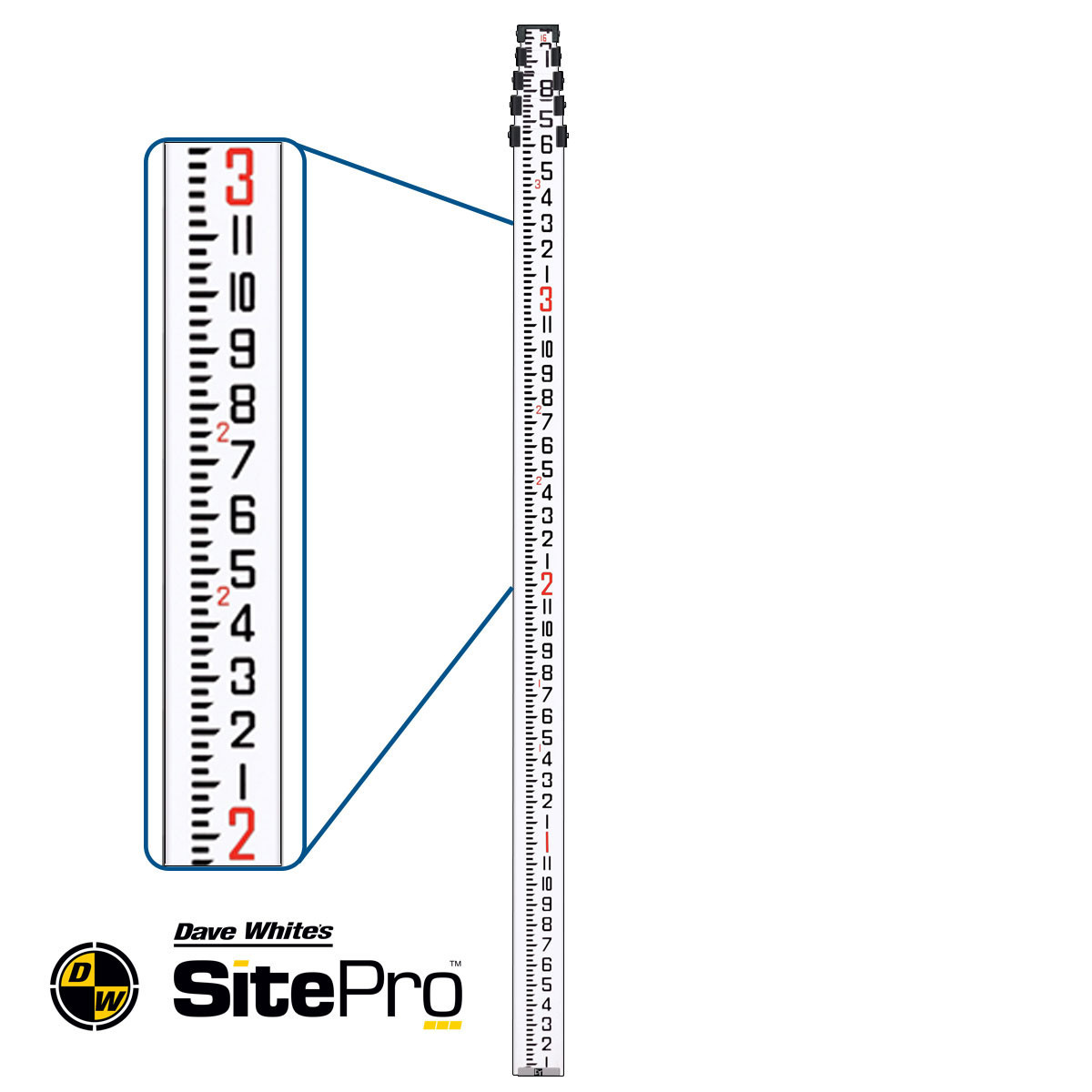

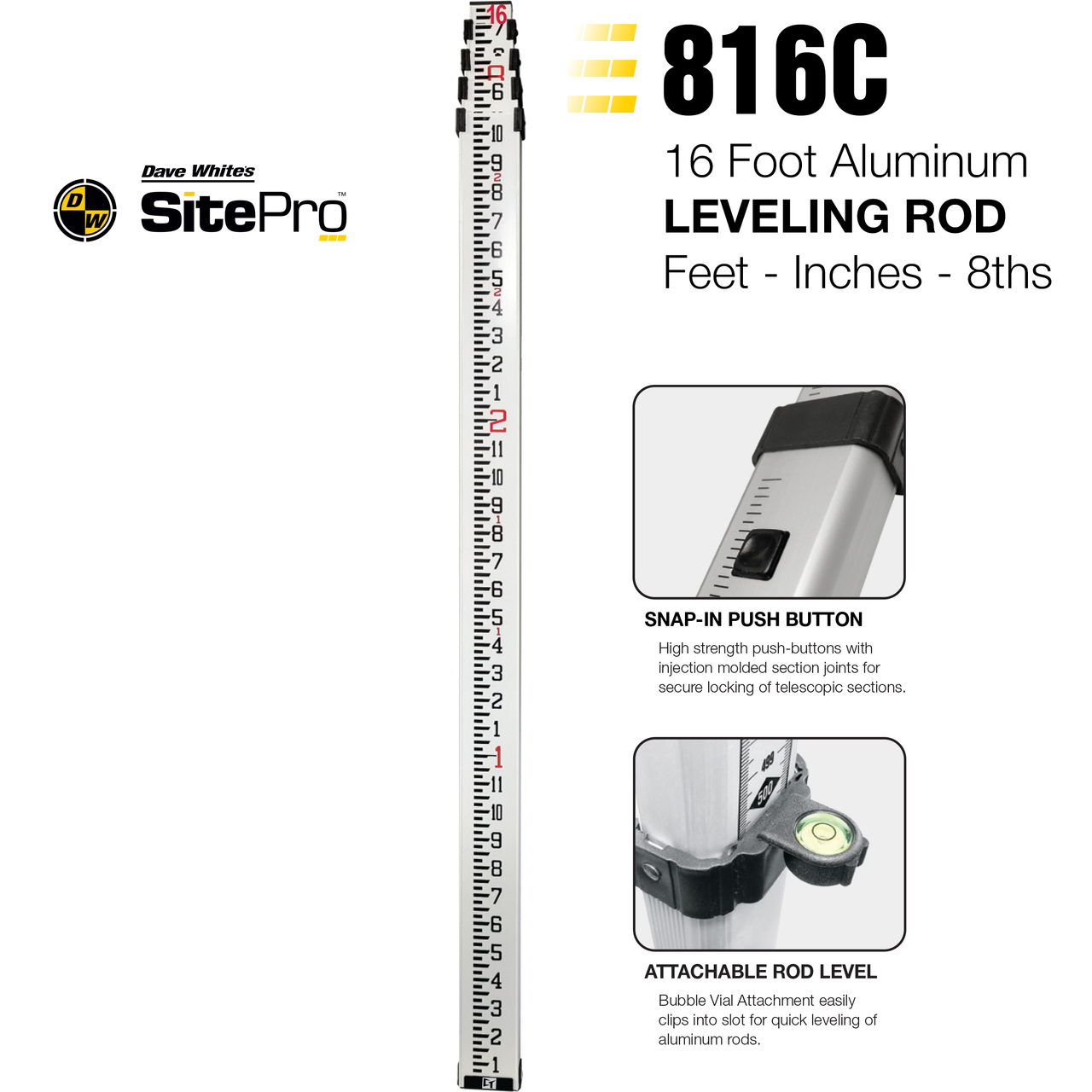

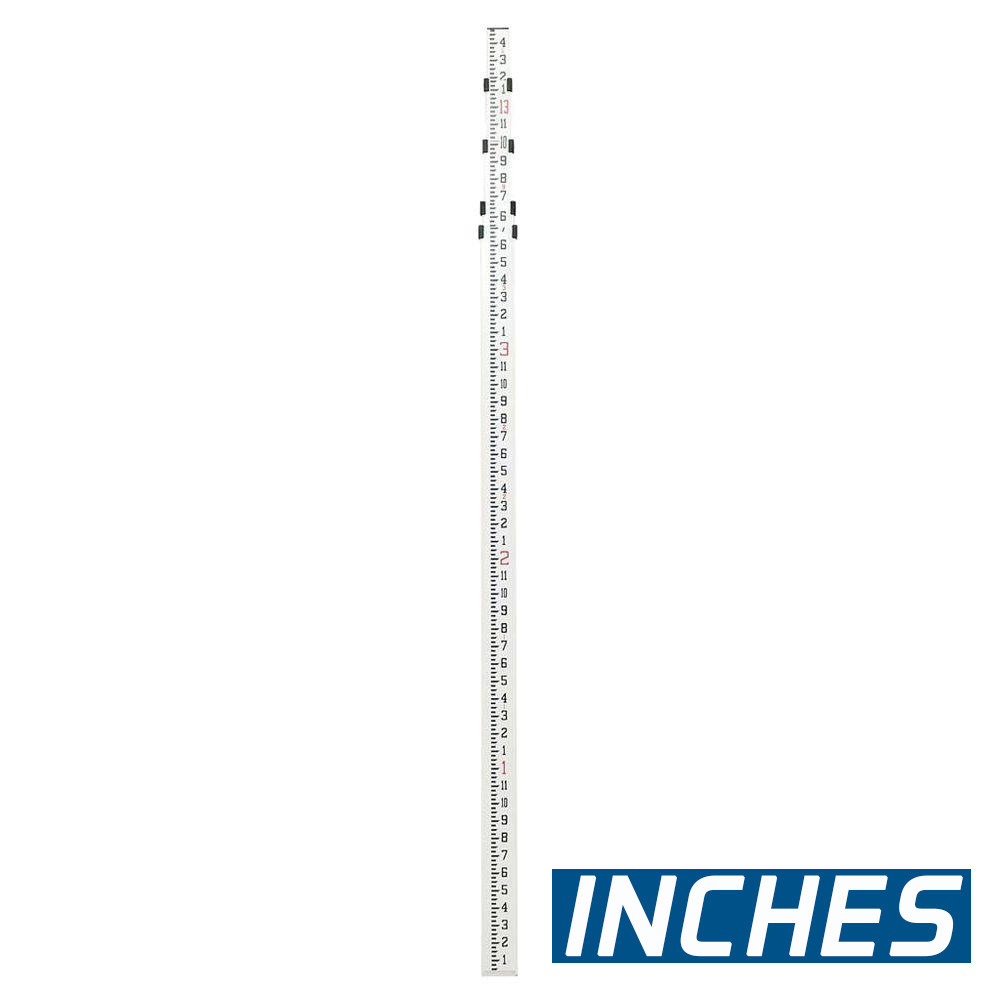

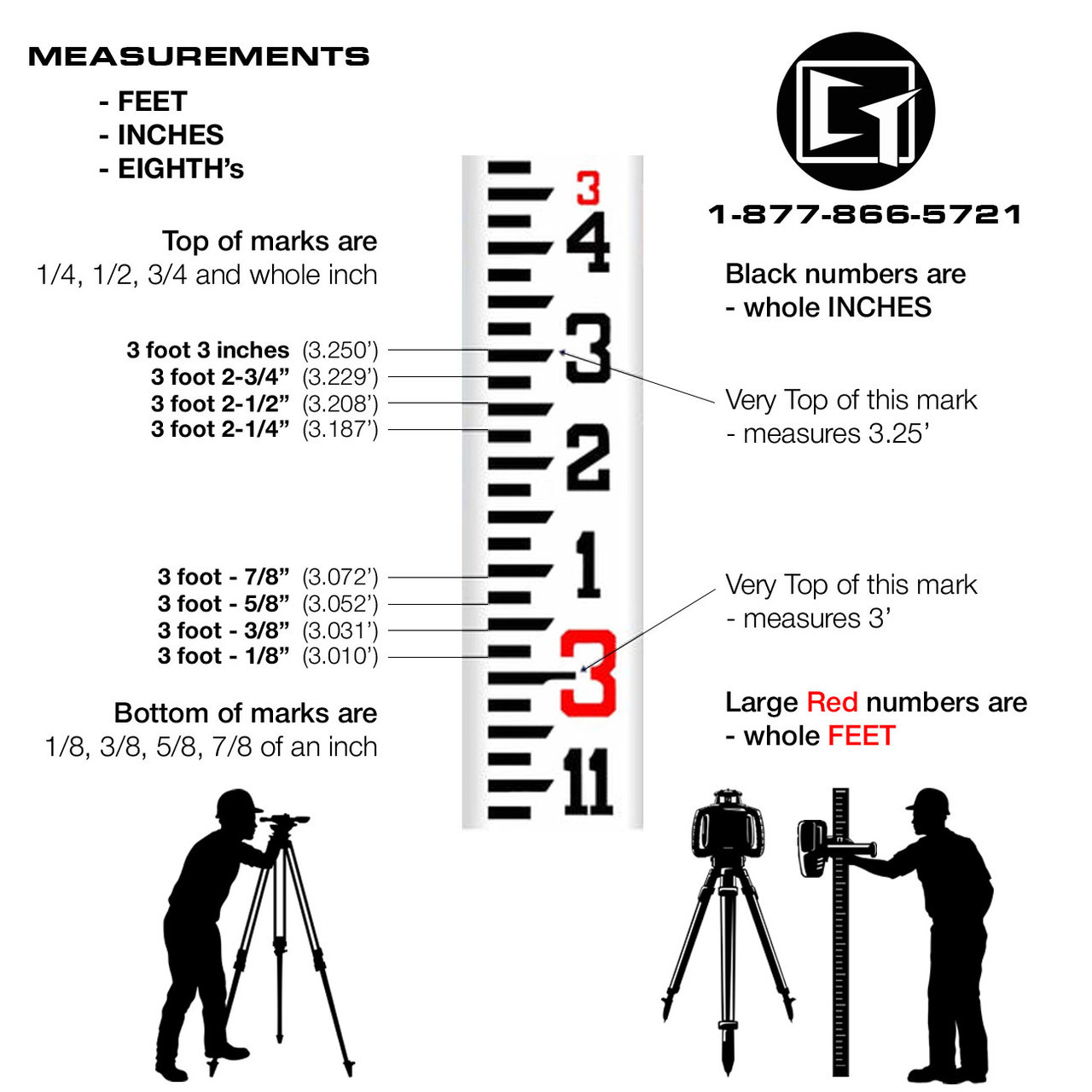

The SDL32's digital measurement mode requires a specially coded (barcode-style) digital level rod to calculate elevation and distance electronically. It can also be used in optical mode with any standard metric or feet/inches rod when you need a conventional reading, though the digital memory and automatic calculation features are only active in digital rod mode.

What is the maximum range of the SDL32?

The SDL32 is typically rated for digital rod readings up to approximately 100 meters (330 feet) under good lighting conditions. Range can be reduced in low light, direct sunlight on the rod face, or when the rod is obscured by dust or haze. For most building and grading applications, this range is more than sufficient for standard instrument setups.

Can I download the stored elevation data to my computer?

Yes. The SDL32 includes an RS-232 serial port and ships with a data cable. Stored point data—rod readings, distances, and sequential point numbers—can be transferred to a laptop or desktop running survey software or imported into a spreadsheet. This eliminates manual re-entry of field notes and provides a clean digital record for project documentation.

Is the SDL32 accurate enough for precision concrete pours and finish grade work?

At ±1.0mm accuracy per kilometer of double-run leveling, the SDL32 exceeds the accuracy requirements of most commercial concrete and finish grade applications. For reference, typical floor flatness tolerances on commercial slabs are measured in fractions of an inch over multiple feet, making the SDL32's sub-millimeter precision well within the margin required for slab elevation control and finish grade verification.
